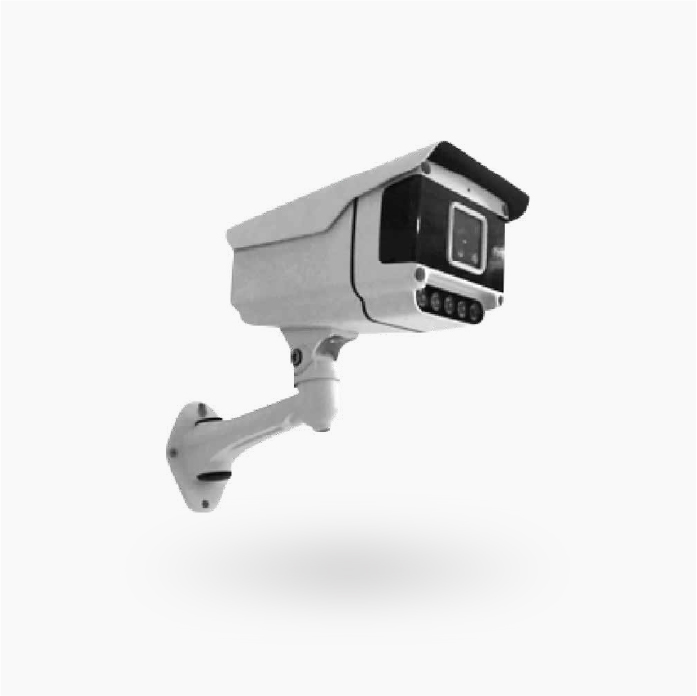

Face Recognition Camera

Face Recognition

An 3MP Internet protocol camera, or IP camera, is a type of digital video camera commonly employed for surveillance, and which, unlike analog closed circuit television (CCTV) cameras, can send and receive data via a computer network and the Internet.

Specification

Camera Video
ModelHC-2A-2D1-A6
MasterHI3516CV500
Image Sensor1/2.9″, 2 million pixels progressive scan ultra-low illumination GC2053 CMOS
Day and night conversion modeICR switch, auto/color/black and white/external trigger
Wide DynamicDigital wide dynamic (off/low/ medium/high)
Light Board ControlAuto/Manual/Off
3D Noise ReductionOff/low/medium/high/high
DefogOff/low/medium/high
MirrorOff/horizontal mirroring/vertical mirroring/180°rotation
Image SettingBrightness, contrast, sharpness, saturation, chroma
Human Shape Detection
Number of Humanoid DetectionCan simultaneously detect ≤30 humanoid targets
Detecting humanoid sizeHI3516CV500
Humanoid detection rate≥99% (meet the above conditions)
Snap response speed≤1s
Maximum detection frame rate9fps/s
False detection rate≤2%
Detection sitePeople of any posture, including half body, head, hands
Personel TrackingStand by
Detection formSupport static human figure detection, support dynamic human figure
detection
Detection MethodSupport visible light image detection, support near infrared image detection
Detection areaSupport designated area, default full screen
Upload MethodPrivate protocol upload
Trigger MethodVideo Trigger
Vehicle Inspection
Vehicle TypeBicycle motorcycle car bus truck airplane train
Detecting humanoid sizeHI3516CV500
Humanoid detection rate≥99% (meet the above conditions)
Snap response speed≤1s
Maximum detection frame rate9fps/s
Interface
Network InterfaceRJ45 10M/100M network adaptation
AudioMIC line input/line output
Alarm Input1 input (expansion board)
Alarm Output2 outputs (expansion board)
Reset ButtonSupport (expansion board)
RS485 interfaceSupport (expansion board)
TF StorageSupport up to 128G, Micro SD (EXT3 /EXT4) card local storage (expansion
board)
