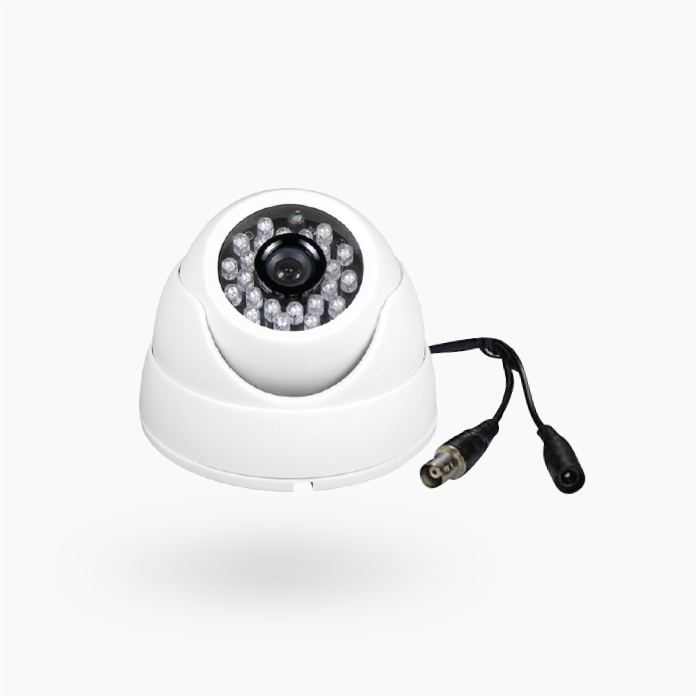

Analog Dome Camera

Analog Dome Camera





Image Sensor 1/2.7” CMOS
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
Effective Pixel 2592(H) x 1944(V), 5MP
Shutter Speed Pal: 1/25~1/100000s NTSC: 1/30~1/100000s
White Balance Auto / Manual
Gain Control (AGC) Auto / Manual
Lens 3.6mm (2.8mm,6mm Optional)
Back Light Compensation                                      BLC / HLC / WDR (100dB)
S/N Ration More than 65dB
Angle of View H: 77.5º (93º/49º)
Video Streaming 20fps@5MP, 25/30@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Resolution 5mp (2592×1944)(Can switch)
ICR Auto (ICR) / Manual
OSD Multi-language
IR IR Range of 20Mtr
Operating Temperature -40ºC~+60ºC / Less than 95%RH
Power Source 12V DC± 30%
Power Consumption Max. 3,6W (12V DC, IR on)
Weatherproof Standard IP67
Casing Plastic
Dimension 97mm x 79.3m (3.8” x 3.1”)
Weight 0,19kg

Download Brochure
