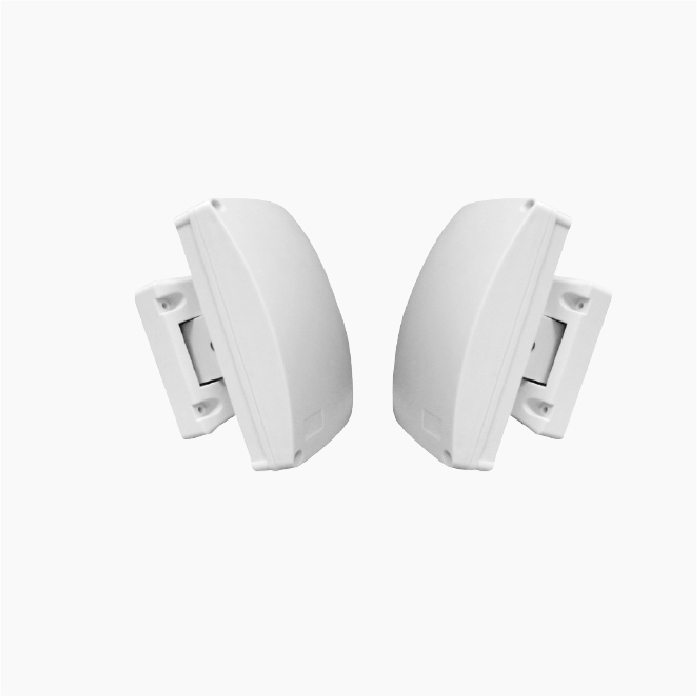

Microwave Barrier

Microwave Barrier

It will alarm under the following status: the intrusion people walking, running, creeping, the speed in 0.1~10m/s. Easy to install, fit for vertical installation on ground or wall. Imported Germany PC cover cooperating with tin alloy brackets.

Specification

Model

MCB-30 MCB-80 MCB-150

MW frequency

10.525GHz

Detection distance

30m 80m 150m

Central location width

5m

Central location height

2.5m

Grass width

0.3m

Snow width

0.5m

Power input

12~18 VDC

Working current

Transmitter:25~30mA,12VDC Receiver:30~35mA,12VDC

Alarm Relay capacity

(N.C.)50mA,20VDC

Alarm time

≤3s

Tamper switch capacity

(N.C.) 0.1A,20VDC

Max emitting power

35mW(common);50mW(Max)

Detection speed

0.1~10m/s

Alarm output

≥3s

Temperature

-40℃~+65℃

Humidity

Max 98%

Dimension

158×113×46mm

Water-proof design

Built-in water-proof equipment, anti-rain/snow 30mm/h
