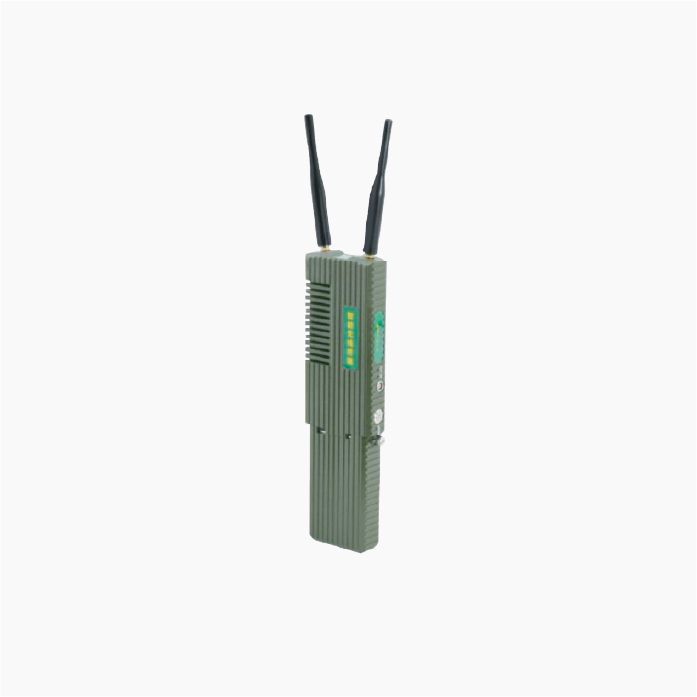

High Bandwidth MESH UHF
High Bandwidth MESH UHF
Multi-hop IP mesh is combined with mobile MESH and IP communication unit, directly delivering HD video, data, and VoIP without any extra infrastructure. Multi-hop mesh performs well in point to point or point to multi-point (one to or one to many) communication, centerless ad hoc network, and multi-hop communication.
5/10/20MHz bandwidth to choose, strong anti-interference. Small and light, multi-hop mesh is suitable for hand carry missions, robotics, and mobile vehicles no matter in aerial, ground, seas.
Specification
| Duplex Mode | TDD |
| Transmit Power | 30dBm (1w) |
| Bandwidth | 5/10/20MHz |
| NLOS Ragne | 1km |
| High Light | WiFi mesh network equipment, mesh wifi equipment |
| Frequency Range | 570~590MHz/1400~1420MHz |
| Waterproof | IP66 |
| Special Function | GPS, Multi-Hops, Roaming Function |
| Operating Voltage | DC9-28V |
| Working Frequency | 570~590MHz/1400~1420MHz 500~1400MHz(On request) 2412-2462MHz(Wifi) 1559-1577MHz(GPS) |
| RF Power | 1W 0.2W(Wifi) |
| Receive Sensitivity | -92dBm -90dBm(Wifi) |
| Bootloader | U-boot |
| Linux | 3.18.19 |
| Wired Network | IP address configurable Subnet Mask Configurable |
| Diversity Mode | Transmitting and receiving diversity |
| Upstream and downstream bandwidth | Two-way bandwidth up to 80Mbps 40Mbps(Wifi) |
| Wireless Network | Working Frequency Adjustable Bandwidth Adjustable RF Power Adjustable Support Adhoc ESSID/BSSID Configurable Supports adaptive rate and fixed-rate modes Support Distance Optimization Support RTS/CTS Setting Connection Status Display |
| Antenna | 2*N-type Antenna Interface 1*Wifi SMA Antenna Interface 1*GPS SMA Antenna Interface |
| Ethernet | 1*100Mbps Ethernet Interface |
| Serial Interface | Support RS232 (Bit rate 9600-115200bps Adjustable) |
| Power Consumption | DC12V Standby Current 320mA Ad Hoc Network Current 460mA Data Transmission Current 1.2A |
| Indicator | 1*System States Indicator Light 1*Ethernet Status Indicator Light 1*Wifi States Indicator Light 3*Network Signal Strength Indicator Light |
| Key | 1*Reset Button |
| Power | DC9-28V |
| Battery | 12V2600mAh |
| Encryption | AES128 |
| Battery Endurance | 2hours |
| Dimension | 141.5mm*88mm*30mm |
| Temperature | Storage: -30℃~+90℃ Working: -20℃~+65℃ |
| Weight | 820g(Including Battery) |
| Moving Speed | ＞200km/h |
| Wireless Network | Bandwidth Adjustable RF Power Adjustable Support Adhoc ESSID/BSSID Configurable Supports adaptive rate and fixed-rate modes Support Distance Optimization Support RTS/CTS Setting Connection Status Display |
| WiFi | Working Frequency Adjustable RF Power Adjustable Support AP mode ESSID Configurable Supports adaptive rate mode Support WMM/802.11e QoS Support Distance Optimization Support RTS/CTS Setting Support MAC address filtering Connection Status Display WPA/WPA2/WEP Encryption Hidden ESSID Support Network transparent transmission GPS original positioning data Support web page management |
| Management | Support SSH security management Import/export configuration information Restore factory configuration Update firmware online |
